Machine Vision

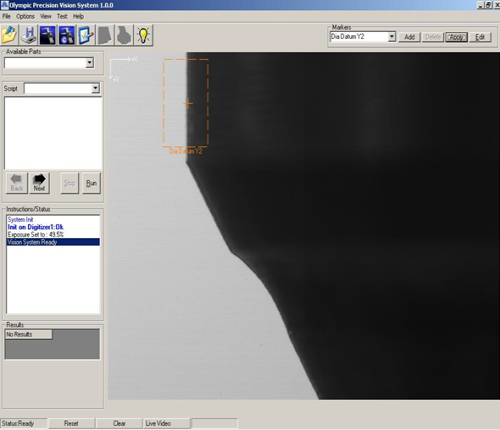

Precision metrology can be performed using a combination of software and hardware tools, but can require a great deal of integration .  Our customer asked us to develop a micron-level imaging system with a robotic hole drilling laser machine. The goal was to automatically locate specific features on the part and then transfer the hole position information to the robot controller for final positioning.



Key design features

  • High resolution Matrox® frame grabber and Active MIL™ control library used as foundation for system
  • Direct integration with Aerotech A3200™ controller
  • Custom Script generator to allow users to develop their own measurement and robot controller code
  • Autofocus and automatic datum generation
